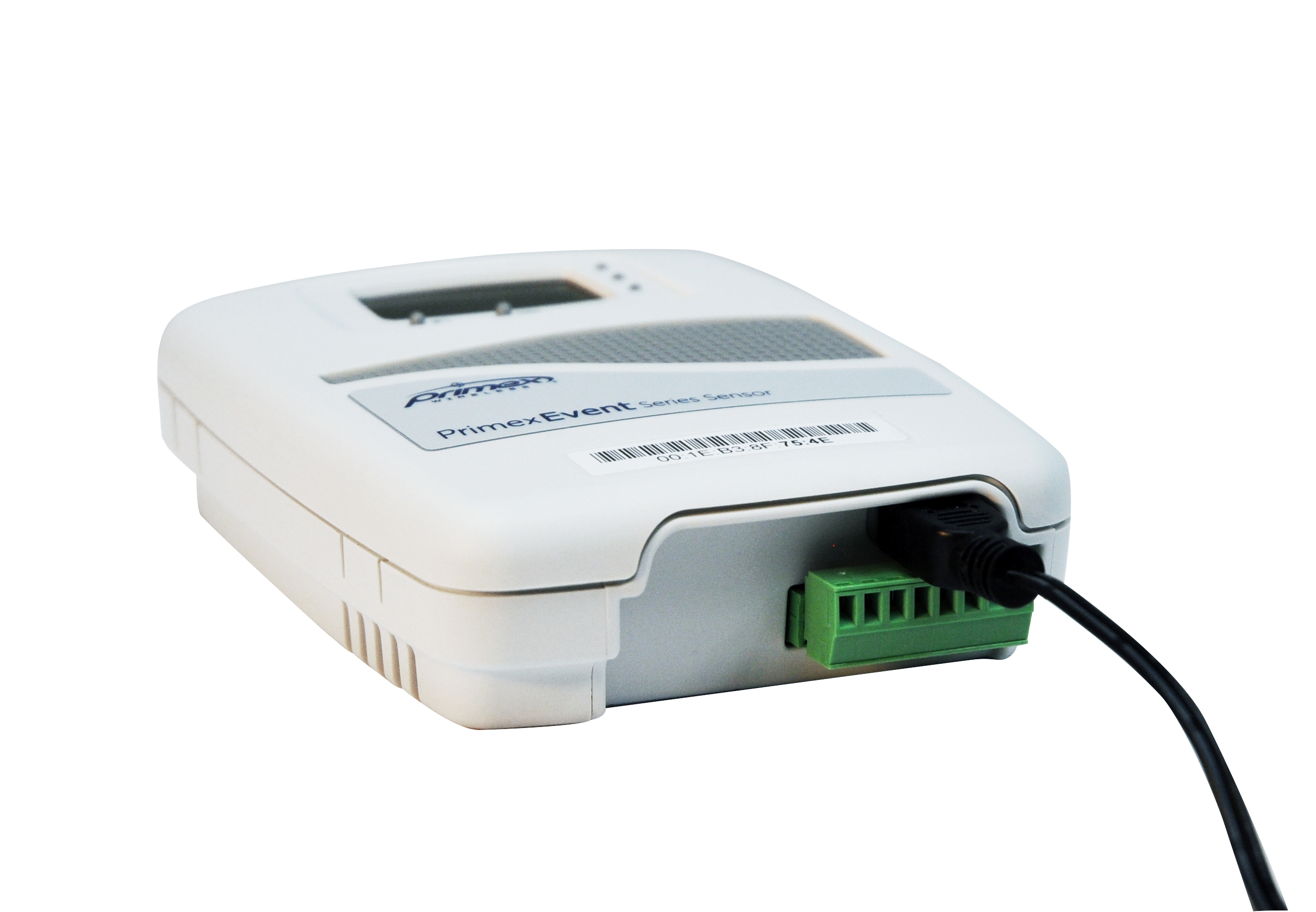

A Bell Controller, part of the cloud-based OneVue Notify Bell Scheduling solution, uses the power of an existing public address (PA) or school bell system to trigger school bells.
Specification |
|
|---|---|
Ratings |
3 VDC Relay operation Normally Closed (NC) & Normally Open (NO) contacts are rated at: Resistive load: 8A at 250VAC / 30 VDC | Inductive Load: 3.5A at 250VAC / 30 VDC |
Power |
AC power: 5V DC USB Mini B (5 pin) connector interface, 5 ft (1.5 m) cable | Input: 100-240 VAC, 50/60 Hz, 0.4A | Output: 5V DC, 1.0A max. Optional power extension cable: USB power cable 6.5 feet (2 m), Mini B (5 pin) M and Mini B (5 pin) F connector Power over Ethernet (PoE): Compliant with IEEE 802.3af standard and compatible with 802.3at standard Backup Battery Life: estimated up to a maximum of 24 hours of battery life with use of two AA Lithium 1.5V batteries. Use of Energizer® L91 Ultimate Lithium batteries recommended. |
Operation |
Alerts: visual LED and LCD display indicators Stored Schedule Capacity: stores a 7-day schedule in its local memory for each of the two relays. Each night after midnight, the 7-day schedules are downloaded to the device. Check-In Interval: hourly; downloads schedules, transmits operating status and event history to OneVue, and synchronizes its time with NTP time source Relays: two individual relays; each relay can be wired for NO (Normally Open) or NC (Normally Closed) operation Dry Contact Inputs: two individual inputs to activate a non-scheduled event (impromptu bell); connected to an external dry contact closure switch or button On-board clock: synchronizes its time with an NTP time source to ensure bell schedule accuracy; even after power outages and Daylight Saving Time shifts |
Network Communication |
Ethernet or PoE. |
Enclosure |
Enclosure: ABS plastic Dimension: 4.7" H x 3.7" W x 1.3" D (11.93cm x 9.39cm x 3.30cm) Weight: 0.3 lb (136 gram) with 2 AA Lithium batteries Display: Liquid crystal display (LCD), HTN reflective glass, dimension: 0.75" H x 1.38" W (1.90cm x 3.50cm) LED Status Indicator: green, yellow, red Mounting options: Key-hole slot with lock down screw holes in back panel for wall mount; or surface mount with supplied dual-lock adhesive mounting strips |
Environment |
Operating Temperature: 32°F to 122°F (0°C to 50°C), indoor use only Storage Temperature: -4°F to 140°F (-20°C to 60°C) |
Certifications |
FCC, CE, and IC compliant |
