Digital Elapsed Timers and Code Blue Timers include a three-button timer control switch that controls the timer functions.
Timer control switch
20 ft. (6.0 m) RJ11 cable (connects switch to timer). Cable length can be extended up to 100 ft. (30.4 m).

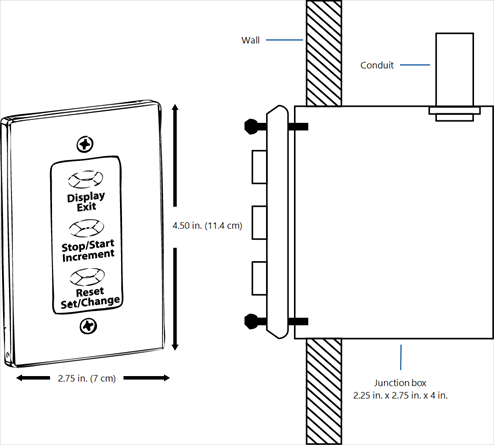

Not supplied: single-gang junction box. Recommend use of a 2¼ in. x 2¾ in. x 4 in. (5.72 cm x 6.99 cm x 10.16 cm) junction box.

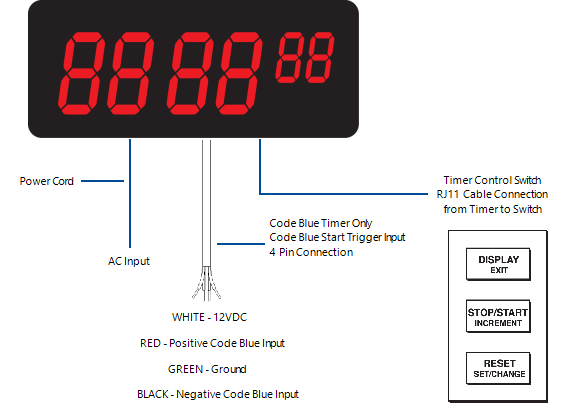

Wire the code blue timer input to the code blue system. Wiring is determined by the code blue system as specified below.
Connect the timer control switch to the timer using the supplied RJ11 cable.
Securely mount the timer control switch into a single-gang junction box.
The timer control switch membrane and wall plate may be cleaned with water or most common disinfectants. Be sure to test any cleaning solutions on a small area.
