Digital Clocks/Timers are shipped from the factory with a power supply and power cord with a two-prong plug. The power plug may be removed and the cord cut to length for hardwired (pigtail) installation. Pigtail installation requires a 120V~ power line in a junction box installed by a licensed electrician. Leave a minimum of 6 in. (15 cm) of cord inside the junction box.

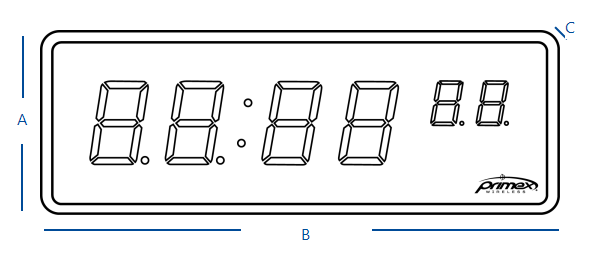

Clock Type |
Weight |
Max. Current Draw |
Height (A) |
Width (B) |
Depth (C) |
|---|---|---|---|---|---|
|
2.5" (6.4 cm) 4-digit |
1.8 lb (0.8 kg) |
135 mA |
5.0" (12.7 cm) |
10.8" (27.3 cm) |
2.2" (5.6 cm) |
|
2.5" (6.4 cm) 6-digit |
2.0 lb (0.9 kg) |
170 mA |
5.0" (12.7 cm) |
13.8" (34.9 cm) |
2.2" (5.6 cm) |
|
4" (10.16 cm) 4-digit |
3.9 lb (1.8 kg) |
185 mA |
8.0" (20.3 cm) |
17.9" (45.5 cm) |
2.4" (6.1 cm) |
|
4" (10.16 cm) 6-digit |
4.6 lb (2.1 kg) |
205 mA |
8.0" (20.3 cm) |
23.3" (59.2 cm) |
2.4" (6.1 cm) |
