Parameter |
Specification |
|---|---|
Operating Frequency Range |
72MHz |
Channels |
49 channels available (pre-programmed prior to shipping) |
Channel Bandwidth |
20KHz |
Maximum Transmission |
1 Watt (at Transmitter) |
Radio Technology |
Narrowband FM |
Bluetooth Technology |
Bluetooth® low energy (v5) wireless technology. To allow pairing with OneVue Device Configurator (ODC) app for configuration and setting management. |
User-defined Settings |
Locally at device with OneVue Device Configurator (ODC) app
OneVue software
|
Dimensions |
17 in. L x 12 in. W x 1.7 in. D (43.2 cm x 30.5 cm 4.32 cm) |
Weight |
9 lb. (4.08 kg) |
Power Supply |
Input: 120 VAC, 50/60 Hz, 0.6 Amp. Output: 9 VDC, 1.78 Amp. 6 ft. (1.83 m) cord |
Front Panel |
Four LED status indicators (Power, Transmit, Caution, Error) and Bluetooth labeled push-button to pair with the Primex OneVue Device Configurator (ODC) app. |

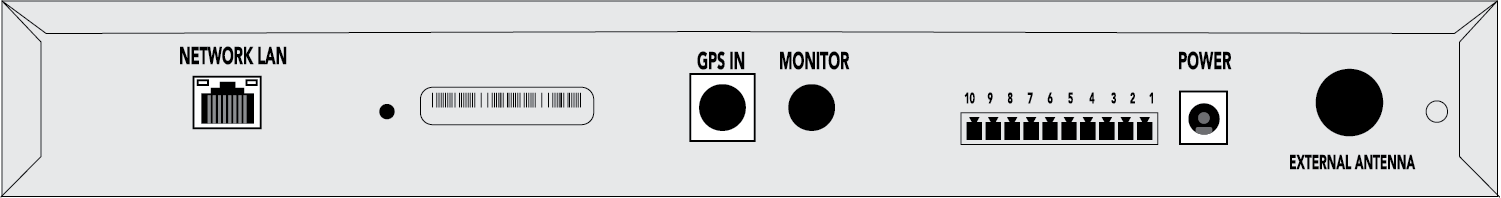

Rear Panel |
DC Input: connection to supplied AC power supply Network LAN port: RJ-45 Ethernet, 10/100 Mbps, 802.3 Ethernet Dry Contact Closure Terminal Block with removable connector: for use with OneVue Notify with Critical Notifications Pinhole button: initiate manual check-in to OneVue (press and release with jewelers screwdriver or other small object) Not applicable to model: GPS IN port (MiniDIN 7-Pin) and Baseboard Monitor port (MiniDIN 9-Pin) |
Top Panel |
Internal Antenna connection. |
Operating Range |
32° to 122° F (0° to 50° C), non-condensing environment |
Warranty |
5 Year |
Canadian Notice: The manufacturer rated output power of this equipment is for single carrier operation. For situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB, especially where the output signal is re-radiated and can cause interference to adjacent band users. This power reduction is to be by means of input power or gain reduction and not by an attenuator at the output of the device.
All specifications are subject to change without notice.
This topic provides the requirements and procedures to install a 1 Watt Repeater Transmitter with an internal antenna.
For a system with more than one Transmitter, first configure and install the main Transmitter and verify it received a valid time signal and then configure Repeater Transmitters. When all Transmitters are configured and installed, you can then configure and install the system clocks or InfoBoards.
When planning the system installation of a Transmitter with an internal antenna, Primex recommends taking into consideration the below requirements. Location is extremely important to ensure the best operation of your system.
Location and mounting must meet all of the following requirements.
Multi-story building: locate the main Transmitter on the top floor; significantly improves coverage to the lower floors due to the “umbrella” pattern of transmission.
Transmitter mounting location: a minimum of 4 ft. (1.2 m) above the floor.
Transmitter shelf mounting: 18 in. L x 3 in. W x 16.5 in. (45.72 cm x 7.63 cm x 41.91 cm) mounting shelf available from Primex.
-
Transmitter enclosure clearance: located in an area that allows for required clearance.
Enclosure dimension: 2 in. H x 17 in. W x 12 in. D (5.08 cm x 43.18 cm x 30.48 cm). Required wall area is 24 in. W x 18 in D (60.96 cm x 45.72 cm).
Allow a minimum of 43 in. (1.09 m) vertical clearance; includes internal antenna 40.8 in. H (1.03 m) and Transmitter enclosure height of 2 in. (5.08 cm).
Internal antenna clearance: requires vertical clearance and distance of a minimum 5 ft. (1.5 m) from large, solid objects, such as lockers or filing cabinets. Antenna should never make contact with metal objects, especially electrical conduit or wiring of any kind, and proximity to these should be avoided. Internal Antenna height: 40.8 in. (1.03 m).
-
AC power: located within 5 ft. (1.5 m) from a 120 VAC electrical outlet. 10 AMP dedicated service recommended.
AC power supply (supplied): Input 120 VAC, 50/60 Hz, 0.6 Amp. Output 9 VDC, 1.78 Amp. 6 ft. (1.83 m) cord.
Ethernet connection (OneVue Monitor and NTP time source): located in close proximity to an Ethernet port.
Environment: located in an indoor controlled environment that is 32° to 122° F (0° to 50° C) and a non-condensing humidity environment.
-
Attach the internal antenna. The supplied antenna is attached to the top case of the Transmitter.
Carefully screw the supplied internal antenna onto the Transmitter. Turn the antenna clockwise, being careful to avoid cross-threading the antenna. The antenna must be snug and flat against the case.
-
Establish an Ethernet connection (NETWORK LAN). Required for NTP time source and OneVue Monitor configuration.
Insert a network cable into the RJ-45 Ethernet port/Network LAN port. Plug the other end into a network Ethernet jack.
-
Connect AC power.
Connect the supplied AC power supply into the Transmitter AC power input. Plug the two-prong plug into a 120 VAC wall outlet.
The last step is to configure the Transmitter with the OneVue Device Configurator (ODC) app. A Transmitter will not operate until it's configured.
OneVue Sync Transmitters can be configured for OneVue Monitor or for Standalone use. To receive remote support services from Primex, OneVue Monitor configuration is required. For Transmitters that are part of a OneVue Monitor subscription, they must be configured for OneVue Monitor use.
