Medium InfoBoard Install & Specifications

  • Updated
Follow

Install Medium InfoBoard: wall mount

An InfoBoard is mounted to a solid wall surface by use of the two keyhole slots located on the back of the device.

Before you begin

  • OneVue Sync Transmitter(s) are installed, configured, and fully operational.

  • ODC app installed on mobile device to configure InfoBoard prior to installing.

  • OneVue subscription (PoE/Ethernet required): verify network infrastructure with facility IT staff. Install location cabling routes must be complete prior to installation.

    IMPORTANT: PoE connection must supply both power and an Ethernet network connection

  • Installation requires in-wall power and cable management. Use of a 4 x 4 junction box is recommended.

    All cabling must follow national and local codes according to the Authority Having Jurisdiction (AHJ).

  • AC power: 120 VAC outlet within 6 ft. (1.8 m) from install location.

    Two-prong plug may be removed for a hardwired (pigtail) installation. Hardwired installation requires a 120V~ power line in a junction box installed by a licensed electrician. Leave a minimum of 6 in. (15 cm) of cord inside the junction box.

  • Code blue or elapsed timer use: identify three-button Timer Control Switch mounting location. Supplied RJ11 cable connected from InfoBoards to the three-button Timer Control Switch. Cable length can be extended up to a maximum of 100 ft. (30 m).

Supplied components

Qty

Component

1

CAT 5 Ethernet cable 4 ft. (1.2 m)

2

#10-16 Phillips Pan Head 1.25 in. L

2

#10-32 Phillips Flat Head 1.25 in. L

2

#10 Wall Anchors

What's required (not supplied)

  • 4 x 4 junction box to support in-wall power and cable management where required by code

  • Phillips screwdriver

  • For concrete wall mount: impact drill and concrete bit

Step 1: Configure InfoBoard

Important

An InfoBoard MUST be configured before it's installed at its permanent location or it will be required to be uninstalled at a later date to complete configuration.

Step 2: Mount InfoBoard

  1. Prepare mounting location and route cabling

    1. Install junction box where required by code.

    2. Pull all cabling to mounting location.

    3. Leave a sufficient amount of cabling to allow connection to InfoBoard.

  2. Prepare wall surface for keyhole mount

    1. Measure and drill holes referencing the keyhole slots located on back panel.

      Distance between two keyhole slots: 8 in. (20.32 cm)

    2. Insert #10 screws into wall anchors.

      Leave at least 3/8 in. (0.95 cm) of the screw head exposed for hanging.

  3. Establish InfoBoard connections (may vary by install)

    1. RJ45 port (Poe/Ethernet use): connection to PoE/Ethernet network. CAT 5 or higher patch cable required.

    2. Four pin input( code blue timer use): connection to supplied four pin connector cable.

    3. RJ11 input (code blue/elapsed timer use): connection to three-button Timer Control Switch.

    4. DC input: connection to supplied power supply; 2-prong plug connected to 120 VAC outlet.

    5. Bluetooth Pairing button (green in color): sets InfoBoard into Bluetooth discoverable mode. For use during configuration with ODC app.

  4. Hang InfoBoard onto keyhole mounting screws

    1. Ensure cabling is concealed within back panel opening or wall opening/junction box and free from kinks or obstructions.

    2. Press InfoBoard onto large portion of keyholes and slide down.

    3. Ensure InfoBoard is securely mounted and level.

      If mount is loose, adjust screw heads close to wall for a tighter, secure mount.

    4. Remove plastic overlay from InfoBoard display.

Install Medium InfoBoard: dual sided ceiling or wall mount

A dual sided mount consists of two single InfoBoards and a Dual Mount Kit. The kit includes a dual housing bracket, a flange that mounts to ceiling or wall, and the hardware necessary to complete installation.

Before you begin

  • OneVue Sync Transmitter(s) are installed, configured, and fully operational.

  • ODC app installed on mobile device to configure InfoBoard prior to installing.

  • OneVue subscription (PoE/Ethernet required): verify network infrastructure with facility IT staff. Install location cabling routes must be complete prior to installation.

    IMPORTANT: PoE connection must supply both power and an Ethernet network connection

  • Installation requires in-wall power and cable management. Use of a 4 x 4 junction box is recommended.

    All cabling must follow national and local codes according to the Authority Having Jurisdiction (AHJ).

  • AC power: 120 VAC outlet within 6 ft. (1.8 m) from install location.

    Two-prong plug may be removed for a hardwired (pigtail) installation. Hardwired installation requires a 120V~ power line in a junction box installed by a licensed electrician. Leave a minimum of 6 in. (15 cm) of cord inside the junction box.

  • Code blue or elapsed timer use: identify three-button Timer Control Switch mounting location. Supplied RJ11 cable connected from InfoBoards to the three-button Timer Control Switch. Cable length can be extended up to a maximum of 100 ft. (30 m).

Dual Mount Kit supplied components

Qty

Component

1

Flange (mounts to ceiling)

1

Flange spline cap

1

Dual housing bracket

1

Hardware package

  • 4 Flange screw cover caps

  • Qty 4 #10-24 x 3 screws

  • Qty 2 #10-24 x 1.25 screws

  • Qty 8 #10 washers

  • Qty 2 #10 nut locks

What's required (not supplied)

  • 4 x 4 junction box to support in-wall power and cable management where required by code

  • Phillips screwdriver

  • For concrete wall mount: impact drill and concrete bit

Step 1: Configure InfoBoard

Important

An InfoBoard MUST be configured before it's installed at its permanent location or it will be required to be uninstalled at a later date to complete configuration.

Step 2: Mount InfoBoards with Dual Mount Kit

  1. Prepare mounting location and route cabling

    1. Install junction box where required by code.

    2. Pull cabling through to mounting location.

    3. Leave a sufficient amount of cabling to allow routing through bracket to InfoBoards.

  2. Mount flange

    1. Measure and drill holes into surface with the correct spacing to mount flange over junction box.

    2. Using the four 10-24 x 3 screws and washers, mount flange to surface.

    3. Pull cabling through flange center opening.

  3. Attach dual housing bracket to flange

    1. Route cabling through center channel of bracket.

    2. Attach bracket to flange using the supplied two #10-24 x 1.25 screws, nut locks, and washers.

  4. Attach InfoBoards to bracket

    Complete below steps for one InfoBoard and then attach second InfoBoard.

    Establish InfoBoard connections (may vary)

    1. RJ45 port (Poe/Ethernet use): connection to PoE/Ethernet. CAT 5 or higher cable patch required.

    2. Four pin input( code blue timer use): connection to supplied four pin connector cable.

    3. RJ11 input (code blue/elapsed timer use): connection to three-button Timer Control Switch.

    4. DC input: connection to supplied power supply; 2-prong plug connected to 120 VAC outlet.

    5. Bluetooth Pairing button (green in color): sets InfoBoard into Bluetooth discoverable mode. For use during configuration with ODC app.

    Attach InfoBoard to dual housing bracket

    1. Verify power is applied and time is displayed.

    2. Ensure cabling is tucked within the bracket openings and is free from kinks or obstructions.

    3. Hold InfoBoard at an angle, hang on one side of the bracket using the two clip hangers at the top of the bracket, and rotate downward while maintaining a connection to the two top clips, and firmly snap into place on the center bottom clip.

    4. Verify InfoBoard is securely attached.

  5. Complete final assembly

    1. Insert screw cover caps into flange mounting holes.

    2. Insert supplied Flange spine cap onto bracket.

      Ceiling mount: side of bracket

      Wall mount: top of bracket

    3. Remove plastic overlay from each InfoBoard display.

Medium InfoBoard Specifications

OneVue Notify InfoBoards digitally display critical notifications, synchronized time, and general messaging. InfoBoards can also operate as a scheduled countdown, code blue, and elapsed timer. When not displaying a critical notification, InfoBoards display synchronized time, general messaging, and non-critical events (elapsed and scheduled timer events).

Specifications

Parameter

Specification

Display

Non-subscription: limited features and configuration options

Adjustable character brightness and color, 12 or 24-hour time format, date format

Adjustable character color options: red, green, blue, yellow, magenta, cyan and white

Adjustable alternating time, date and general message

64-character general message with adjustable scroll speed and digit color

Operation

* Requires OneVue subscription and Ethernet connection

** Requires Notify Elapsed Timer and Code Blue Conversion Kit

Critical Notification events: received over 72MHz wireless radio frequency

Time source: OneVue Sync Transmitter over 72MHz wireless radio frequency or NTP (Ethernet connection required)

Automatically adjusts for Daylight Saving Time

Scheduled countdown timer*: events activated from assigned Zone schedules

Code blue timer**: events activated from integration with code blue system and end-user actions from Timer Control Switch

Elapsed timer**: events activated from Timer Control Switch

AC Power Supply

120 VAC (100-240)/50–60 cycle, 0.6A

Output: 12V 2A

10 ft. (3.0 m) cord with two-prong plug

UL/cUL listed

Power Outage Memory

Up to six weeks at room temperature

Communication Protocols

72MHz wireless radio frequency (RF)

PoE: IEEE 802.3af-2003. Maximum power consumption: 15.4 Watts (Class 3).

IMPORTANT: PoE connection must supply both power and an Ethernet network connection

Ethernet: 10/100 Mbps

Bluetooth® 4.2 compliant

Audible Tone

Large and Medium InfoBoard models only. Requires OneVue subscription and Ethernet connection

100 dB internal speaker; emits tone at elapsed timer stop

Rear Panel

DC Input: for connection to supplied 120 VAC power adapter

RJ45 port: 10/100 Mbps

Four pin port (code blue timer use): connection to code blue timer connector

RJ11 port (code blue and elapsed timer use): connection to Timer Control Switch

Bluetooth pairing button (ODC app configuration): sets device into Bluetooth discoverable mode

Mounting

Single-sided wall keyhole mount

Dual-mount: Large InfoBoard (ceiling) and Medium InfoBoard (ceiling and wall) with Dual Mount Kit

In-wall cable management

Enclosure

ABS plastic

Lens Material

Acrylic plastic

Environment

Indoor use only

Operating temperature: 32° to 95° F (0° to 35° C)

Operating humidity: 15% to 90% RH, non-condensing

Storage temperature range: -4° to 158° F (-20° to 70° C)

Cleaning

Cleanable with a non-abrasive, non-contaminating, lint-free soft cloth or microfiber cloth that is either moistened with water, 12% bleach/water solution, or a common disinfectant. Test any cleaning solutions on a small area before using it on the entire device.

Do not use caustic cleaners or abrasives and avoid ammonia based products.

Certifications

FCC/IC/CE marked

All specifications are subject to change without notice.

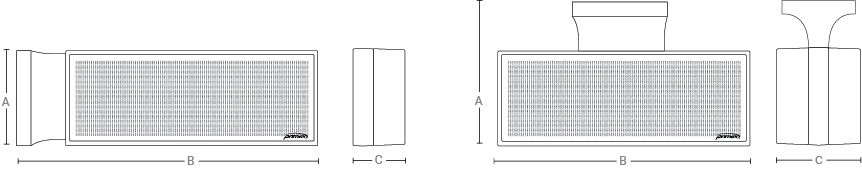

Weight and dimension specifications

Weight

Height (A)

Width (B)

Depth (C)

Single Medium InfoBoard

3.5 Lbs. (1.6 kg)

8.25 in (21.0 cm)

14.5 in. (36.8 cm)

2.5 in. (6.35 cm)

Dual Mount Kit - Wall

2.0 Lbs. (0.9 kg)

8.25 in. (21.0 cm)

18.5 in. (46.99 cm)

6.75 in. (17.1 cm)

Dual Mount Kit - Ceiling

2.0 Lbs. (0.9 kg)

12.25 in. (31.12 cm)

14.5 in. (36.8 cm)

6.75 in. (17.1 cm)
