The Clock Bridge Warning State Report includes Bridges in a Warning state. Also includes each Bluetooth clock and repeater the Bridge received data from over its last connection to the mesh network.
When the cause of the Warning state is resolved and the Bridge returns to a Normal state, the other clocks and repeaters should also return to a Normal state.
If the Bridge is in a Warning state and did not receive data during its last connection to the Sync Bluetooth mesh network, the report displays "There are no clocks currently for this Bridge".
The following provides details of what's included in the report and an example of the report. The Fields to Include options selected in the report profile set what optional fields (data) are included in the report. If the report does not include what's needed, be sure to review the options selected.
Report heading detail
Heading: displays the name of the Report Profile and the report date range.
Signature: when the report is manually generated (run now) by a user, the name of the user is displayed. If the report was automatically generated by the schedule set in the Report Profile no information is displayed and the signature line can be used for written signature purposes.
Run date: date and time the report was created.
Account: OneVue account name.
Bridge details
Report is sectioned by each Bridge and details each Bluetooth clock and repeater the Bridge received data from over its last connection to the Sync Bluetooth mesh network.
Business Unit: Business Unit assigned to the Bridge.
Location: Location assigned to the Bridge.
Gateway ID: Unique 12-character ID (MAC address) of the Bridge.
Status: The status of the Bridge at the time the report was generated. Identifies the condition that resulted in the Bridge entering a Warning state.
Days in Warning: Number of days the Bridge has been in a Warning state.
Bluetooth Clock or Repeater details
Clock Name: Name of the clock or repeater. By default, set to its 12-character Device ID (BTID).
Business Unit: Business Unit assigned to the clock or repeater. By default, set to the account Business Unit.
Location: Location assigned to the clock or repeater. By default, a location is not assigned to a device.
BTID: Each device is identified by a unique Device ID, allowing it to receive its unique settings managed in OneVue, and authenticate and connect to the mesh network.
State: The state of the device at the time the reported was generated.
Status: The status of the device at the time the report was generated. The status indicates the cause of the device entering a Warning state.
Days in Warning: Number of days the device has been in a Warning state.

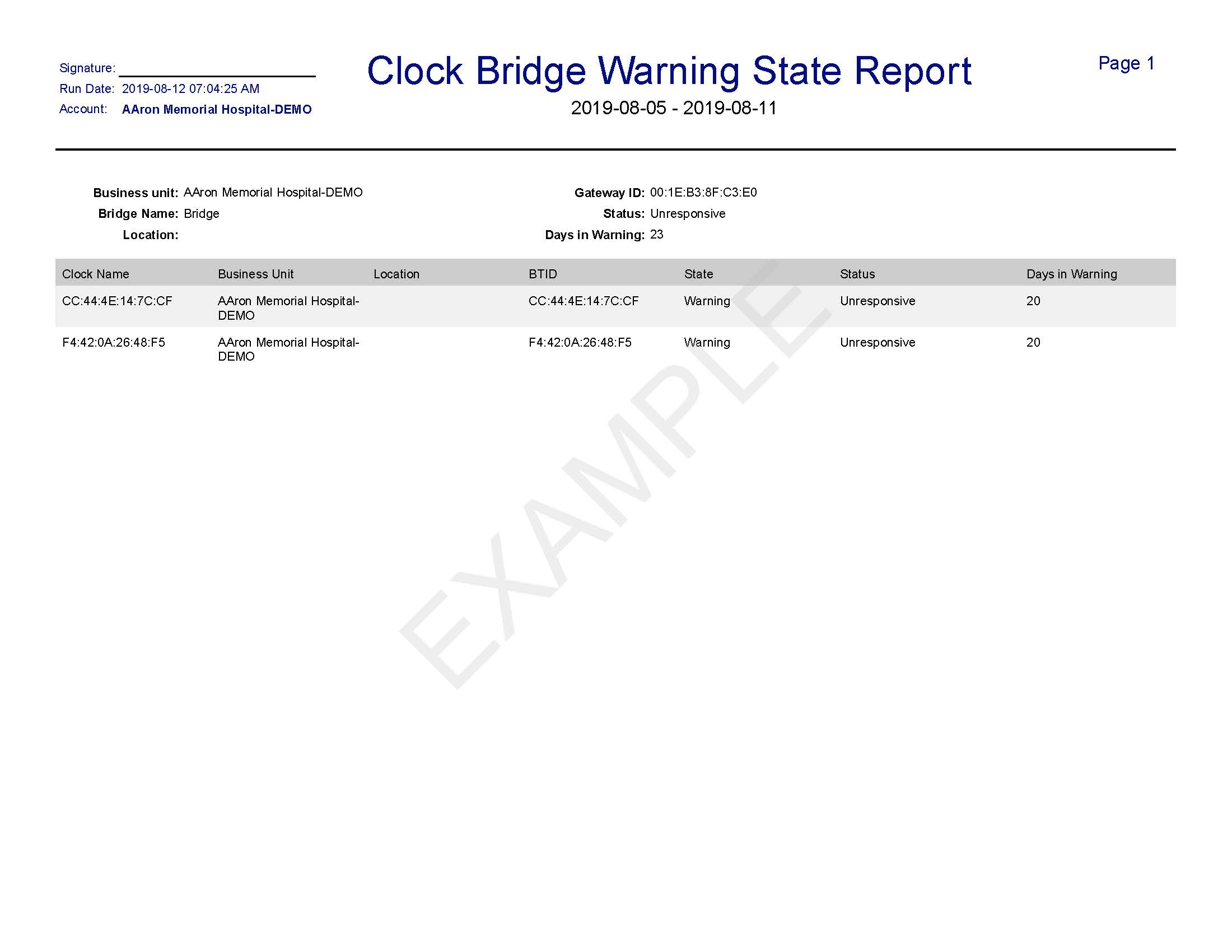

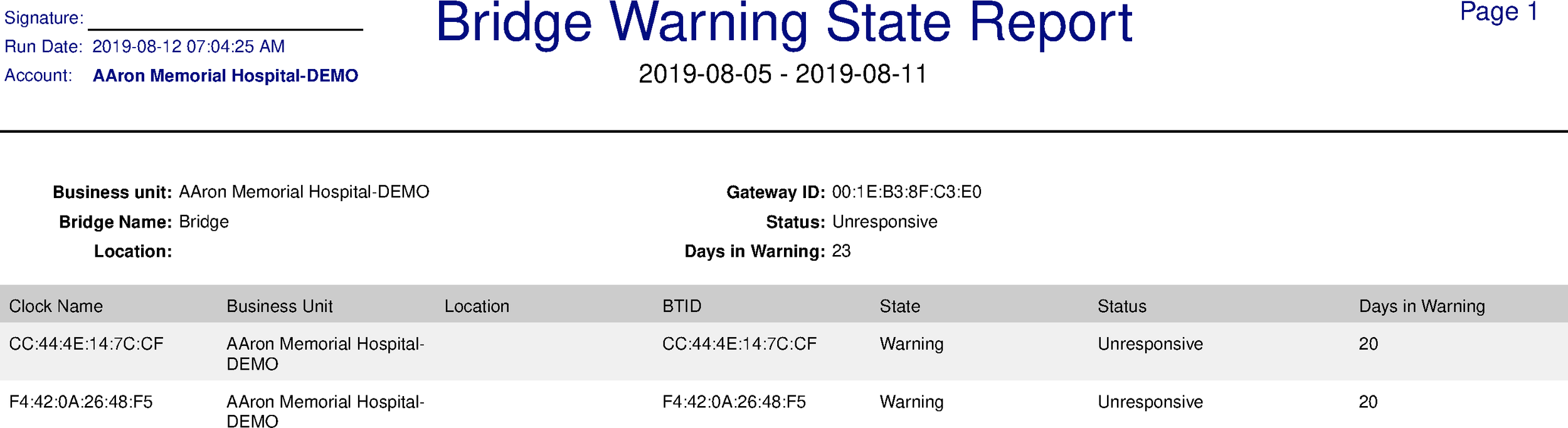

Report example
