The Clock-InfoBoard Warning State Report only includes Sync clocks and timers and Notify InfoBoards that are currently in a Warning state. When in a Warning state, a device requires attention to resolve the cause of it entering a Warning state.

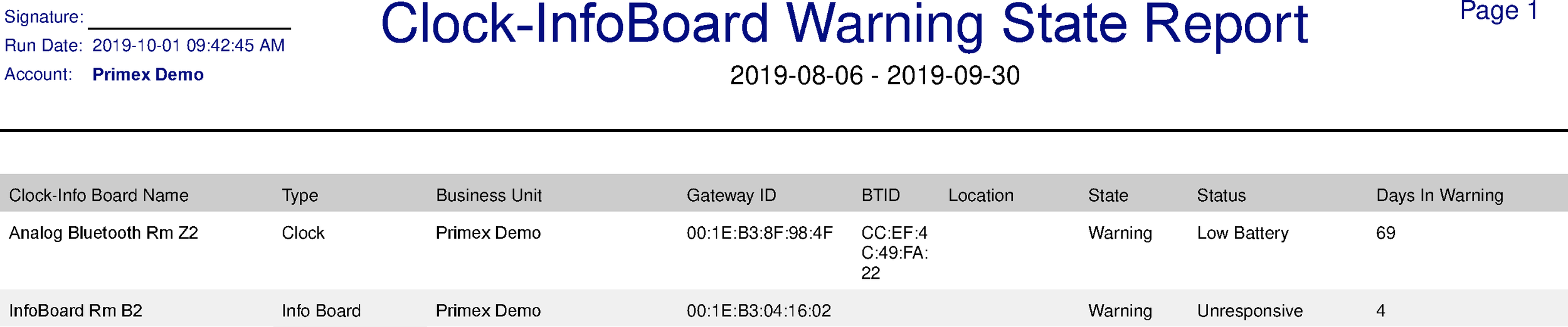

The following sections provides an overview of the report and an example.
Report heading detail
Heading: Displays the name of the Report Profile and the report date range.
Signature: When the report is manually generated (run now) by a user, the name of the user is displayed. If the report was automatically generated by the schedule set in the Report Profile, no information is displayed and the signature line can used for written signature purposes.
Run date: Date and time the report was created.
Account: OneVue account name.
Below are all fields that can be included in the report.
Clock/InfoBoard Name: Name of the device. By default, set to its 12-character Device ID/MAC address.
Type: Identifies the device model.
Business Unit: Business Unit assigned to the device.
Location: Location assigned to the device.
Gateway ID: Unique 12-character ID (MAC address) of the Bridge that last reported the device's status.
BTID: Sync clock with Bluetooth wireless technology has a unique Bluetooth ID, allowing it to receive its unique settings managed in OneVue, and authenticate and connect to the mesh network.
State: State of the device at the time the reported was generated.
Status: Status of the device at the time the report was generated. The status identifies the condition that resulted in the device entering a Warning state.
Days in Warning: Number of days the device has been in a Warning state.
