You may have a handful to hundreds of devices deployed at your facility. Each clock and repeater has its own its profile, where you can manage its settings, view its current state and status, and historical data.
From a clock or repeater profile, you can manage its settings, view its current state and status, and historical data.

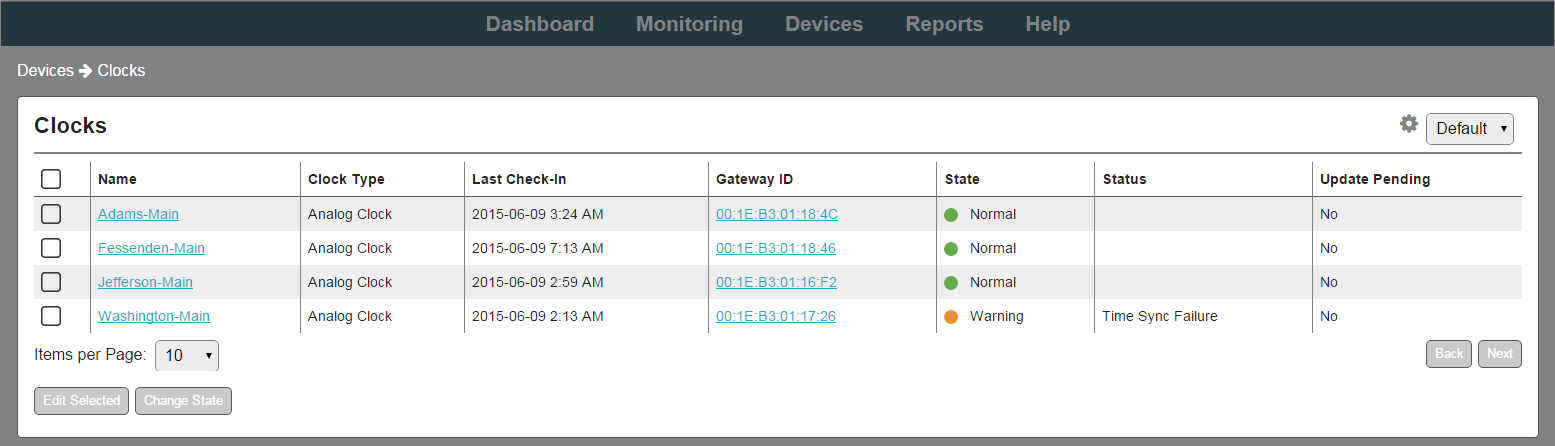

Go to Devices > Clocks.
-
A list of all devices is displayed.
Column
Definition
Name
Commonly identifies the device install location. By default, set to its 12-character Device ID (MAC address)Sync Bluetooth Device ID (BTID). Allows up to a maximum of 50 characters. Selecting the Name link opens its profile.
Description
Identifies the type of device. BC indicates a Sync Bluetooth device.
BTID
Device's unique 12-character ID.
Gateway ID
The gateway of the Bridge that transmitted the last operating state of the clock or repeater over the Sync Bluetooth mesh network.
Selecting the link opens its gateway profile.
State
Current state of the device.
Status
Current status of the device.
Update Pending
Its Update Pending status is set to Yes. The update is scheduled to be downloaded to the device during its next daily connection to the mesh network. Once downloaded, its Updating Pending status is set to No. Also, the Update Pending Status for all bridges is set to Yes. This is due to a Bridge sends setting updates to clocks and repeaters.
From a clock profile you can manage its settings, view its current state and status, and historical data.
Go to Devices > Clocks.
From the list, select the Name link of the device. Its profile is displayed.
-
To view all settings, select Show Advanced Options.
Setting
Definition
Name
Description
Identifies the device model.
BTID
System generated, unique Bluetooth Device ID assigned to the device.
Gateway ID
The gateway of the Bridge that transmitted the last operating state of the clock or repeater over the Sync Bluetooth mesh network.
Selecting the link opens its gateway profile.
State
Current state of the device.
Status
Current status of the device. The status indicates the cause of a clock entering a Warning state.
Update Pending
Indicates if a setting change is scheduled to be downloaded to the device during its connection to a Sync Bluetooth mesh network.
The pending setting change takes effect once the setting change is downloaded to the device. Once successfully downloaded, its Updating Pending status is set to No.
State History
All state changes occurred by a device.
Accuracy Log
Summary of the check-in history to OneVue and drift and NTP accuracy log. This data may be beneficial when troubleshooting the time accuracy of a clock.
Digital Event History
Sync Bluetooth® Digital Elapsed Timers and Code Blue Timers: Digital events are not transmitted to OneVue.
Business Unit
Business Unit assigned to the device. By default, set to the account Business Unit.
Location
Location assigned to the device. By default, a device is not assigned to a Location. Locations are commonly used if a group of devices reside in different time Zones.
Notes
For information purposes only. Commonly identifies other unique device detail in addition to its name.
Change State
Allows a user assigned to an Admin Role to change the state of the device.
Although OneVue monitors and manages the state of all devices, the state change is designed to provide a function that allows an admin to change the state of a device.
Time Zone
Display Settings (Digital Clocks/Timers)
Brightness level, display mode and format of the digital clock or timer, and audio buzzer setting for an elapsed timer.
