Transmitter channel number, time zone, and time source configuration

  • Updated
Follow

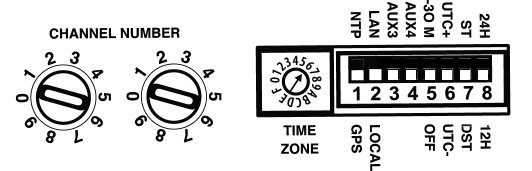

The setting panel, located on the back side of a Transmitter, consists of dial and dip switch settings that set its channel number, time zone, and time source.


Channel Number

Preset by factory. The Channel Number is set according to the FCC license; do not attempt to change without contacting Primex.

Time Zone

  • Transmitter with internal antenna: set the Time Zone dial to your system Time Zone using the dial Time Zone switch.

  • Transmitter with external antenna: the Time Zone is preset by the factory. If your application requires adjustments to these settings, contact Primex Technical Support.

    4 for Atlantic Time Zone

    5 for Eastern Time Zone

    6 for Central Time Zone

    7 for Mountain Time Zone

    8 for Pacific Time Zone

    9 for Alaska Time Zone

    A for Hawaii Time Zone

    0 for Greenwich Mean Time (GMT)

Time source and time settings

Set the Transmitter dip switch settings below to meet the system requirements.

Switch

Function

Up Position

Down Position

1

NTP/GPS

Receive time from NTP server.

Receive time from a GPS Receiver.

2

LAN/Local

LAN network connection is enabled.

Required for use of NTP time source.

Local USB and/or serial port attached to unit is enabled.

3

Aux 3 (setting unassigned)

Not applicable

Not applicable

4

Aux 4 (setting unassigned)

Not applicable

Not applicable

5

-30M

-30 minute offset enabled

Transmitter is installed in Newfoundland or other countries with a -30 minute off set.

-30 minute off set disabled

(default position)

6

UTC Offset

Transmitter is installed in Europe.

Transmitter is installed in North America

7

Daylight Saving Time

Daylight Saving Time is disabled.

Daylight Saving Time is enabled.

8

12-Hour or 24-Hour Time

Time is displayed in 24 hour time.

Time is displayed in a 12 hour time.
