You may have a handful to hundreds of devices deployed at your facility. Each clock has its own its profile, where you can manage its settings, view its current state and status, and historical data.
From a clock profile, you can manage its settings, view its current state and status, and historical data.

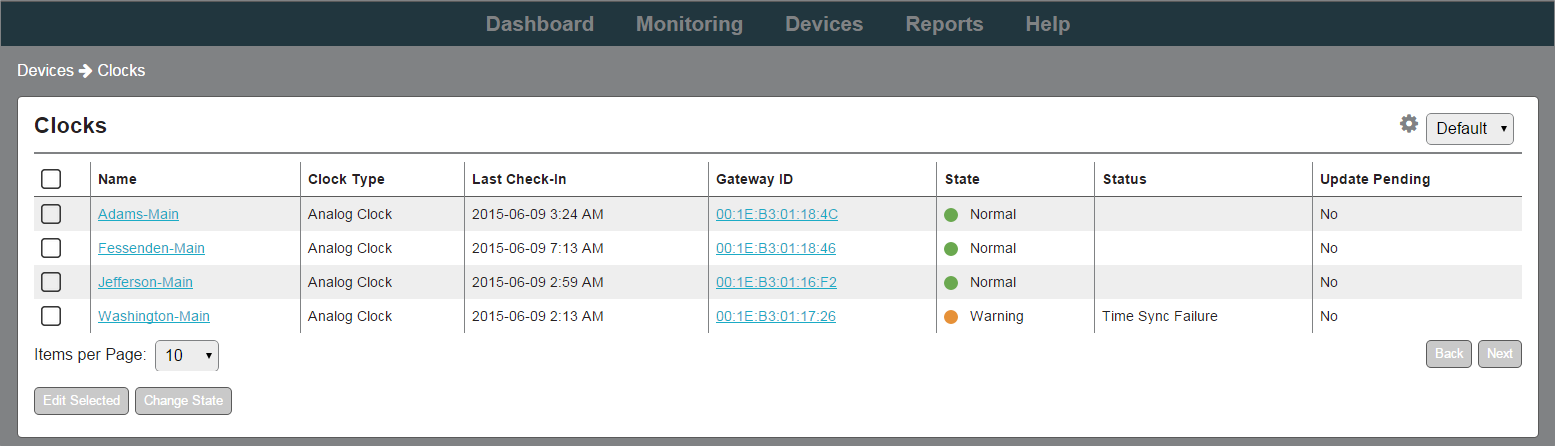

Go to Devices > Clocks.
-
A list of all devices is displayed.
Column
Definition
Name
Commonly identifies the device install location. By default, set to its 12-character Device ID (MAC address). Allows up to a maximum of 50 characters. Selecting the Name link opens its profile.
Description
Identifies the type of device. BC indicates a Sync Bluetooth device.
Gateway ID
12-character Device ID (MAC address) .
Selecting the link opens its gateway profile.
State
Current state of the device.
Status
Current status of the device.
Update Pending
Its Update Pending status is set to Yes. The update is scheduled to be downloaded to the device during its next daily connection to the mesh network. Once downloaded, its Updating Pending status is set to No. Also, the Update Pending Status for all bridges is set to Yes. This is due to a Bridge sends setting updates to clocks and repeaters.
From a clock profile you can manage its settings, view its current state and status, and historical data.
Go to Devices > Clocks.
From the list, select the Name link of the device. Its profile is displayed.
-
To view all settings, select Show Advanced Options.
Setting
Definition
Name
Description
Identifies the device model.
Gateway ID
12-character Device ID (MAC address) .
Selecting the link opens its gateway profile.
State
Current state of the device.
Status
Current status of the device. The status indicates the cause of a clock entering a Warning state.
Update Pending
Indicates if a setting change is scheduled to be downloaded to the device during its connection next check-in to OneVue.
The pending setting change takes effect once the setting change is downloaded to the device. Once successfully downloaded, its Updating Pending status is set to No.
State History
All state changes occurred by a device.
Accuracy Log
Summary of the check-in history to OneVue and drift and NTP accuracy log. This data may be beneficial when troubleshooting the time accuracy of a clock.
Digital Event History
Sync PoE Digital Elapsed Timer and Code Blue Timers: During each check-in, digital events are transmitted to your OneVue account. A Digital Event is a specific action of an elapsed or code blue timer invoked by use of the timer control switch. Typically each digital event has a start and stop action and either a count up, count down, or code blue type of event.
Business Unit
Business Unit assigned to the device. By default, set to the account Business Unit.
Location
Location assigned to the device. By default, a device is not assigned to a Location. Locations are commonly used if a group of devices reside in different time Zones.
Notes
For information purposes only. Commonly identifies other unique device detail in addition to its name.
Change State
Allows a user assigned to an Admin Role to change the state of the device.
Although OneVue monitors and manages the state of all devices, the state change is designed to provide a function that allows an admin to change the state of a device.
Time Zone
Display Settings (Digital Clocks/Timers)
Brightness level, display mode and format of the digital clock or timer, and audio buzzer setting for an elapsed timer.
