A dual-sided Digital Clock/Timer consists of two single-sided clocks/timers and a dual bracket kit. The kit includes a dual housing bracket, a flange that mounts to ceiling or wall, and the hardware necessary to complete the installation. Using the kit, you combine the two single-sided clocks to create a dual-sided clock. The 4” x 6 digit version of the digital clock cannot be wall-mounted.
Note
The two clocks function independently of each other and are monitored and managed as two single devices in OneVue.
Quantity |
Component |
|---|---|
1 |
Flange (mounts to ceiling or wall) |
1 |
Bracket (bolts to flange and to which two clocks are mounted) |
Required (not supplied): electrical junction box, cord retaining clips. |
Mounted Dimensions |
|||
|---|---|---|---|
Clock Type |
Width from Wall (A) |
Height from Ceiling (B) |
Depth of 2 Clocks (C) |
|
Dual 2.5” (6.4 cm) 4-digit |
13.8” (35.1 cm) |
8.0” (20.3 cm) |
5.9” (15.0 cm) |
|
Dual 2.5” (6.4 cm) 6-digit |
16.8” (42.7 cm) |
8.0” (20.3 cm) |
5.9” (15.0 cm) |
|
Dual 4” (10.16 cm) 4-digit |
20.9”(53.1 cm) |
11.0” (27.9 cm) |
6.3” (16.0 cm) |
|
Dual 4” (10.16 cm) 6-digit |
N/A* |
11.0” (27.9 cm) |
6.3” (16.0 cm) |
*4” 6-digit clock is not available as wall mount. | |||
-

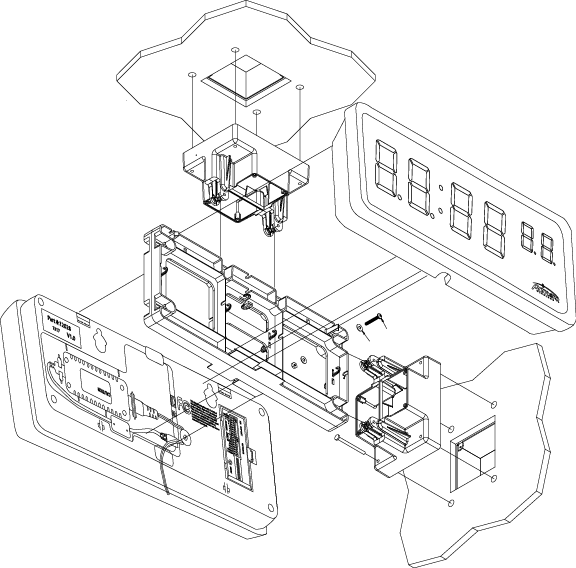

On the wall or ceiling, measure and drill holes with the correct spacing to mount the flange over the junction box.
-
Attach the flange to the wall or ceiling using the toggle anchors and the longer machine screws provided.
Wall-mount: if the mounting location is outside of the junction box, break off or cut openings in the flange to route power cords.
Attach the bracket to the flange using the supplied shorter machine screws, nuts, and washers.
For wall mount only, knock out power cord break.
Wire clocks to main power, using cord retaining clips to dress wires.
Align the clock to the bracket hooks and hinges and snap into place.
