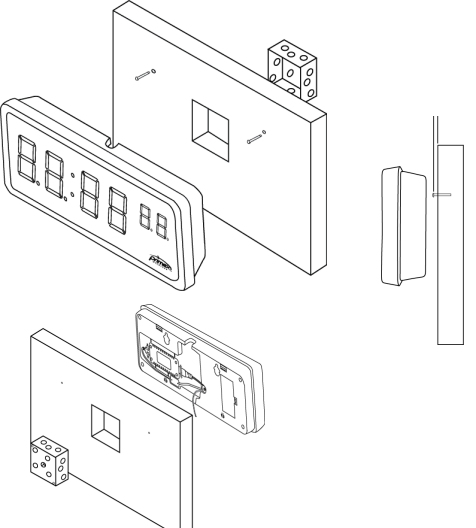

A Digital Clock/Timer can be mounted directly to the surface of a wall by use of the clock keyhole mounts and the supplied screws and anchors.
Dimension D: Clock screw hole spacing.
Dimension E: Distance to wall surface for 4° mounting bracket
Dimension F: Distance to wall surface for 18° mounting bracket
Dimension G/H: Mounting bracket screw hole spacing.
Dimension |
||||||||
|---|---|---|---|---|---|---|---|---|
Clock/Timer Model |
A |
B |
C |
D |
E |
F |
G |
H |
2.5” 4-digit - 4° bracket |
4.8” |
10.6” |
2.1” |
6.0” |
0.38” – 0.63” |
N/A” |
8.0” |
2.5” |
2.5” 6-digit - 4° bracket |
4.8” |
13.6” |
2.1" |
6.0” |
0.38” – 0.63” |
N/A |
8.0” |
2.5” |
2.5” 4-digit - 18° bracket |
4.6" |
10.6" |
2.2" |
6.0" |
N/A |
2.1" |
9.5" |
2.5" |
2.5” 6-digit - 18° bracket |
4.6" |
13.6" |
2.1" |
6.0" |
N/A |
2.1" |
9.5" |
2.5" |
4” 4-digit wall mount |
8.0” |
17.9” |
2.4” |
14” |
0.4 – 0.9” |
N/A |
12.0” |
4.0” |
4” 6-digit wall mount |
8.0” |
23.3” |
2.4" |
14” |
0.4 – 0.9” |
N/A |
12.0” |
4.0” |
Most building codes prohibit the use of hardwired power connections for devices that can be removed without tools. A clock/timer mounted directly to a wall is required to have a standard power plug.
Mount the clock/timer directly to the wall with the two #10 screws and anchors (supplied). To determine the spacing of the screws, refer to the mounting dimensions.
