Power over Ethernet (PoE) |
PoE.IEEE 802.3af Compliant Maximum power consumption: 12.9 Watts (Class 3) |
|
AC power supply (optional accessory) |
120 VAC (100-240)/ 50–60 cycle, 10 ft. (3.0 m) cord with two-prong plug, UL/cUL listed |
Enclosure |
Enclosure: ABS plastic Junction box: UL listed (UL 50E 1st Ed; listing number E469550) |
Operation |
12 or 24-hour time display PM indicator light Alternating time and date display option LED digit dimmer option (100%, 75%, 50%, 25%) Automatically adjusts for Daylight Saving Time (DST) If power is interrupted, the clock stops until power resumes. Upon resumption of power, the clock self-corrects to the current time. Retains time in memory for up to one hour. |
Environment |
Operating temperature: 32° to 95° F (0° to 35° C) Storage temperature range: -4° to 158° F (-20° to 70° C) |
Certifications |
FCC, CE, and IC compliant |

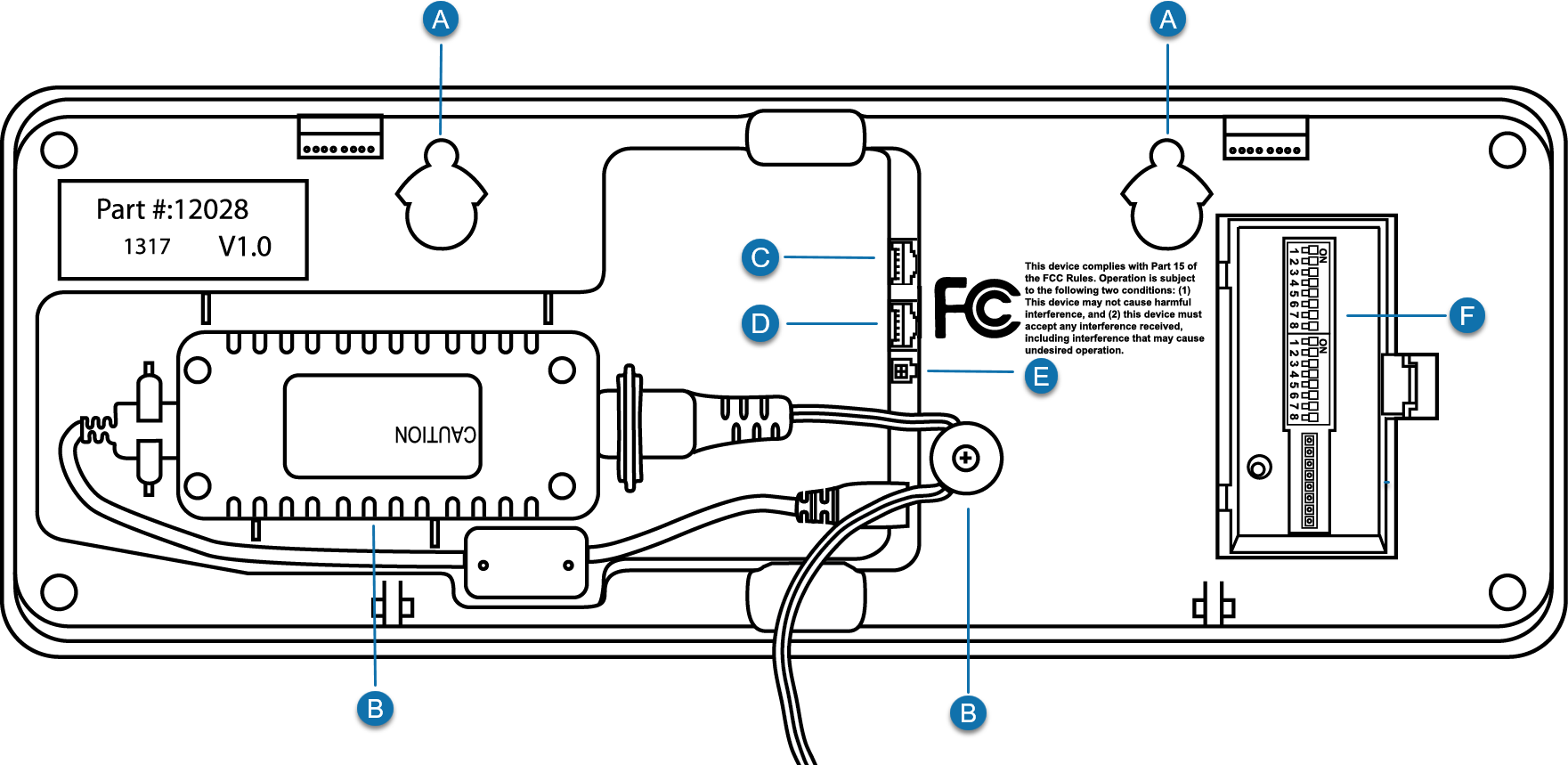

The backside of a Levo Digital Clock/Timer houses the mounting, power, connection inputs, and setting panel.
Key-Hole Mount (2)
AC power supply and power cord with 2-prong plug (AC model). Power cord strain relief assembly with supplied washer and screw.
RJ45 port (PoE model)
RJ11 port (elapsed timer and code blue timer model): connection to supplied Timer Control Switch
4 pin port (code blue timer model): connection to supplied 4 pin 30 in. (76.2 cm) connector
Setting panel (options vary by model): Mini-USB port, manual dimmer display button, Reset (check-in) button
